Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | Peiyu |
Model Number : | SPC-SW40F |
Certification : | CE,ISO9001:2008,High-tech enterprise |
Price : | Individual quotation according to different requirements |
Payment Terms : | T/T,L/C |
Supply Ability : | 30 pcs per month |
Delivery Time : | 30-40 workdays |

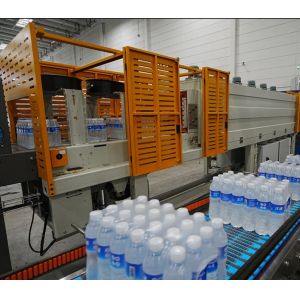

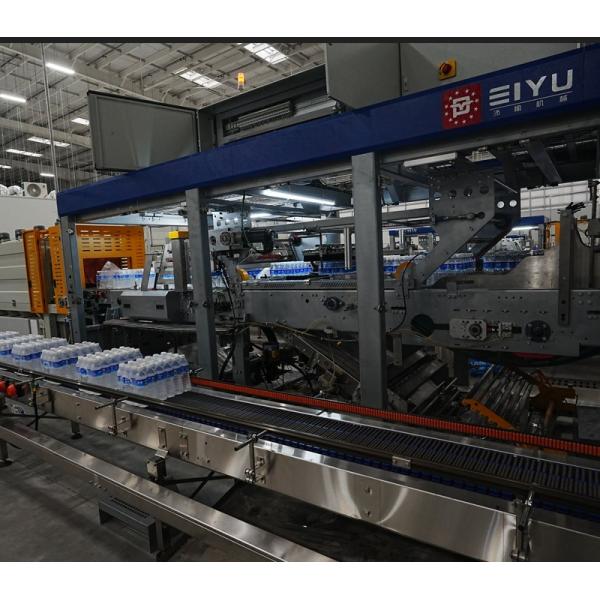

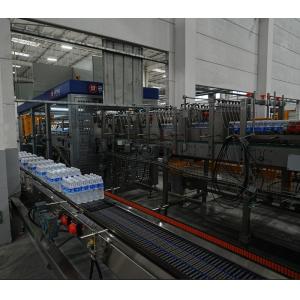

Industrial Shrink Wrapping for Bottles for Bottled Water – High-Speed, Durable & Efficient
Shanghai Peiyu Packaging Technology Co.,Ltd.
Product Overview
Our Heat Shrink Wrapping Machine is designed for high-speed bottled
water production lines, ensuring secure and visually appealing
packaging for 6-packs, 12-packs, or custom bundles. Compatible with
PE/POF shrink films, it delivers airtight sealing, tamper evidence,
and brand-enhanced packaging for the beverage industry. Ideal for
still/sparkling water, soft drinks, and liquid products.
Key Features & Advantages
High-Speed Performance
Processes up to 120 bundles per minute (adjustable to line speed).
Synchronized conveyor system for seamless integration with fillers/cappers.
Versatile Packaging
Handles various bottle sizes (200ml–2L) and configurations (round/square bottles).
Compatible with PE, POF, or PVC shrink films (thickness: 15–50µm).
Energy-Efficient Heating
Stainless steel heat tunnel with PID temperature control (±1°C accuracy).
Low-energy infrared heaters reduce film waste by 20%.
Durable & Low-Maintenance
IP65-rated electrical components for humid environments.
Tool-free adjustments for quick format changes (<5 mins).
Smart Control System
PLC + HMI touchscreen for preset recipes, fault diagnostics, and output tracking.
Optional IoT integration for real-time monitoring.
Technical Parameters
Model | Customized | Customized |
---|---|---|
Speed | 60–120 packs/min | 80–200 packs/min |
Film Width | 150–450mm | 200–600mm |
Power | 15kW | 25kW |
Shrink Tunnel | 1.2m/1.8m length | 1.8m/2.4m length |
Air Pressure | 0.6–0.8MPa | 0.6–0.8MPa |
Dimensions | 3.2m×1.1m×1.5m | 4.5m×1.3m×1.6m |
Why Choose Our Shrink Wrapper?
✔ 30% Higher Efficiency – Patented film tension control reduces
jams.
✔ FDA-Compliant – Safe for food contact (CE, UL certifications).
✔ After-Sales Support – 24/7 remote troubleshooting, global spare
parts network.
FAQ
Q: What film types are supported?
A: Works with PE, POF, and PVC films. POF recommended for
eco-friendly operations.
Q: Can it handle 24-pack bundles?
A: Yes, custom configurations available (contact for specs).
Q: How is temperature controlled?
A: Auto-adjusting heat tunnel with overheat protection.
Q: What’s the warranty period?
A: 2 years for mechanical parts, 1 year for electrical.
![]() |
