High quality and durable 18-20 cases per minute chain tray case packer
Application scope of the packaging machine: It has a wide range of applications and can be used for packaging of various products, such as red wine, white wine, cocktails, beer, various bottled beverages, bottled water, soy sauce bottles, edible vinegar bottles, medicine bottles, cosmetics and other types of glass bottles or PET plastic bottles.
The production capacity range of the packaging machine is 8-35 boxes per minute according to different packaging specifications
The main components of the packaging machine are:

1.Chain tray case packer Working principle and process:

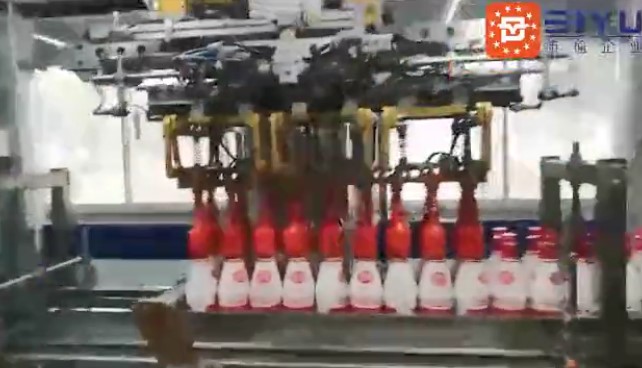

This machine mainly consists of four parts: bottle inlet conveyor, box inlet conveyor, guide frame, and chain disc grabbing system. First, the bottles are arranged in lanes on the bottle inlet conveyor and arrive at the grabbing position. The chain disc grabbing system grabs the bottles and then moves to the top of the packing position along the chain track. At the same time, the carton also arrives at the designated position. The guide frame descends to position the carton. Then the bottle is placed into the carton through the guide frame to complete the packing action. Finally, the carton enters the carton sealing machine through the box inlet conveyor output machine.
1).Products are sorted and transported in multiple lanes for packing
2).Grouping, vacuum suction cups (or grippers) pick up products and empty boxes and enter the packing station
3).Chain plate swing arm mechanism grabs and packs, 3 boxes/time
4).Carton sealing machine

2.Application Scenario for chain tray case packer:
The chain tray case packer is widely used in water production line, beverage production line, canned food production line, pet food production line, beer production line, liquid seasoning production line, etc.

3.Chain tray case packer Equipment features:
Peiyu SPC-CL chain tray packer is an intelligent fully automatic packer with a high-speed bottle separation device, suitable for packing glass bottles, beverage bottles and other canned items of various regular shapes.
This machine adopts PLC plus touch screen display control, and is equipped with bottle shortage alarm, no bottle no packing and other installation configurations. It is easy to operate and reduces staff and labor intensity. It is one of the preferred models for fully automatic food packaging.

4.Chain tray case packer Technical parameters:
Rated capacity: 18 boxes/minute (depending on the packaging form) (beat: 6 times/min)
Air source pressure: 0.5-0.8MPa
Air consumption: 500NL/Min
Box loss rate: ≤0.3%
Equipment size: L5500 x W1700 x H2500(mm)
Input power: 4KW

Different names for cream case packing equipment:
Carton wrapping machine
Barreled water case packing machine
Single column case packer

Automated case packer
Robotic case packer
Case packing equipment
Packer machine
High speed case packer
Bottle case packer
Robotic case packer
Automatic case packer
Automatic case packing machine
Auto case packer
Top load case packer
Case packaging machine
Wraparound case packer
Case packaging equipment
Compact case packer
Box packer machine
Bottle case packer machines
Case packer for cans
Robot packing machine
Industrial case packing machines
Horizontal case packer
Robotic packaging machinery
Robotic bottle case packer
Robotic carton packing machine
Robotic tray packing machine
Egg case packer machine

Chain Type Caser
Wrap Around Caser
Case Packer
Carton Packer
Wrap Around Carton Packing Machine
Drop Down Case Packer
Wrap Around Case Loader
Carton Packer
Carton Packers
Carton Packer Machine
Bottle Jar Pouch Noodle Bag Case Packing Machine
Bottle Carton Case Packing Machine
Wrap Around Case Loader
Carton Packing System
Case Erector Sealer and Strapping Packaging System

5.Quotation and delivery time for Chain Tray Case Packing Machine Robotic Case Packer High Speed 4KW:
(1).Quotation validity period: 1 month;
(2).Payment method: T/T, L/C.
(3).Customers provide the product and packaging samples required for factory trial free of charge;
(4).Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

6.Quality Assurance for Chain Tray Case Packing Machine Robotic Case Packer High Speed 4KW:
(1).The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2).The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3).The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4).The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5).The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

7.Equipment warranty for Chain Tray Case Packing Machine Robotic Case Packer High Speed 4KW:
(1).After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2).If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3).After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life.

8.Packaging and transportation for Chain Tray Case Packing Machine Robotic Case Packer High Speed 4KW:
(1).Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2).Transportation method: land transportation, sea transportation.

9.Chain tray case packer Configuration principles of electrical components for equipment supplied by Peiyu:

10.Chain tray case packer Project Case: VV Soy Milk Cartoning Machine Project:

Peiyu Enterprise wholly owns:

Shanghai Peiyu Packaging Technology Co., Ltd., Anhui Peiyu Packaging Technology Co., Ltd., Shanghai Peiyu Machinery Manufacturing Co., Ltd., Jiangsu Peiyu Food and Beverage Co., Ltd., and Jiangsu Heyu Packaging Materials Co., Ltd. We provide a complete set of intelligent equipment and turnkey engineering services for global liquid and solid product companies. We can provide complete line solutions for flexible packaging, cans, aluminum bottles and cans, PET bottles, PE bottles, glass bottles, roof bags, aseptic cartons and other packaging production lines.
Through long-term experience in mechanical design and manufacturing, our company currently has hundreds of mature and stable packaging machinery and equipment, covering aluminum bottle and can three-in-one filling machine series, sterilization kettle series, can (bottle) unloading machine series, fully automatic loading and unloading cage series, fully automatic stacking and unloading series, sleeve label series, labeling series, packing series, conveying, air conveying system, etc. The company's products are widely used in various cans (bottles) of beverages, dairy products, pure water, condiments, alcohol, oil, cosmetics, medicine and other related industries.

After years of hard work, the company has established extensive and close cooperation with well-known companies such as Thailand Red Bull(With brand Sunrise group),Coca-Cola,Pepsi,Nestle (With brand of Yinlu),BONDULLE Group,Mars(China mainland, Tianjin),Mars (Mexico factory ),Mane Group (China mainland, Zhejiang),Mane Group (Indonesia ),DANONE Group,Yili Group, Lulu Group, Weiwei Group, Hebei Yangyuan Zhihui, Wanglaoji Group, Mengniu Group, Southern Black Sesame Group, Shanghai Baoying Beverage, Chengdu Yinlu, Yanghe Wine Industry, Heze Bencao, Jilin Jinyi, Shanxi Zilin Vinegar Industry, Jiyuan Youyang Beverage, Ting Hsin Group, Uni-President Group, Unilever, Danone Group, Heinz Group, Huapeng Group, Huiyuan Group, Hangzhou Zhongya, Harbin Pharmaceutical Group, Qidu Pharmaceutical, Siping Hongbaolai, etc. The company's products are exported to many countries and regions such as North America, South America, Africa, Europe, and the Middle East, and have won the title and reputation of excellent suppliers. Peiyu Enterprise has established technical research and development centers in Xi'an, Shanghai, and Chuzhou, using high-tech and forward-looking design concepts to meet the different needs of domestic and foreign customers. In the Singapore (Suzhou) High-tech Industrial Park in Chuzhou National Development Zone, Anhui Province, we have a 60,000 square meter production base, with modern factories, R&D centers, processing centers, testing centers, assembly workshops, spare parts warehouses, office buildings, living areas and other facilities. The production workshop is equipped with advanced processing equipment such as through-block laser cutting machines, plasma cutting equipment, pentahedron processing centers, American Haas processing centers, laser tube cutting machines, etc., which provide extremely reliable guarantees for the manufacturing accuracy and stability of our products.
The company strictly implements the ISO9001 quality system certification standards for design and manufacturing, and has passed the audit of German Rhine Company (TUV). The company has European CE certification. The company adheres to the business philosophy of sustainable service and continuous pursuit, and creates the most competitive automation equipment with unique mechanical design and years of accumulated control essence.
Peiyu Enterprise is willing to work with you to develop and gain fruitfulness together!
